Idetek, Inc. (Equate® Immunoassay)

IDETEK, INC.

(formerly BINAX CORPORATION, ANTOX DIVISION)
(Equate® Immunoassay)

TECHNOLOGY DESCRIPTION:

The Equate® immunoassay (see photograph below) uses an anti-benzene, toluene, and xylene (BTX) polyclonal antibody to facilitate analysis of BTX in water. A hapten-enzyme conjugate mimics free BTX hydrocarbons and competes for binding to the polyclonal antibody immobilized on a test tube. After the test tube is washed to remove unbound conjugate, a substrate chromogen mixture is added and a colored enzymatic reaction product forms. The enzymatic reaction is stopped by adding a few drops of sulfuric acid, which colors the enzymatic product yellow.

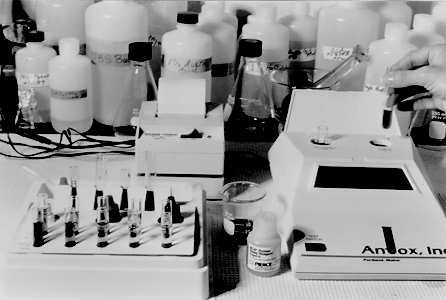

Equate® Immunoassay Kit

As with other competitive enzyme-linked immunosorbent assays, the color intensity of the enzymatic product is inversely proportional to the sample analyte concentration. Each sample is run with a reference sample of deionized water. The optical density of the colored enzymatic product is read on a portable digital colorimeter equipped with a filter that passes light at a peak wavelength of 450 nanometers. The ratio of the sample to the reference optical density values is used to estimate the aromatic hydrocarbon level in the low parts per million (ppm) range. The test is sensitive to about 1 ppm and requires 5 to 10 minutes per analysis.

WASTE APPLICABILITY:

The Equate® immunoassay is designed to measure BTX in water.

STATUS:

The National Exposure Research Laboratory-Las Vegas evaluated several versions of the Equate® immunoassay. The evaluation focused on cross-reactivity and interference testing and on analysis of benzene, toluene, ethylbenzene, and xylene and gasoline standard curves.

As a preliminary field evaluation, the Equate® immunoassay was used to analyze in duplicate five well samples and a creek sample, both in the field and the laboratory. Confirmatory analysis was conducted using purge-and-trap gas chromatography with an electron-capture detector, in parallel with a photoionization detector.

A SITE demonstration of the Equate® immunoassay was conducted in 1992. Results from this demonstration were published in June 1994 in an EPA report entitled "Superfund Innovative Technology Evaluation (SITE) Program Evaluation Report for Antox BTX Water Screen (BTX Immunoassay)" (EPA/540/R-93/518).

FOR FURTHER INFORMATION:

EPA PROJECT MANAGER:
Jeanette Van Emon
U.S. EPA
National Exposure Research Laboratory
Characterization Research Division
P.O. Box 93478
Las Vegas, NV 89193-3478
702-798-2154
Fax: 702-798-2261
