The Tri-Services Site Characterization and Analysis Penetrometer System (SCAPS) was developed by the U.S. Army (U.S. Army Corps of Engineers, Waterways Experiment Station [WES] and the Army Environmental Center [AEC]), Navy (Naval Command, Control and Ocean Surveillance Center), and the Air Force (Armstrong Laboratory). The U.S. Army holds a patent for the application of laser sensors combined with cone penetrometry. The laser- induced fluorescence (LIF) system used in the SCAPS was modified from a design developed by the Navy to detect petroleum, oil, and lubricant fluorescence in seawater.

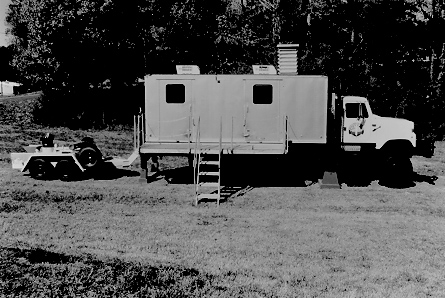

A complete cone penetrometer (CPT) truck system consists of a truck, hydraulic rams and associated controllers, and the CPT itself. The weight of the truck provides a static reaction force, typically 20 tons, to advance the CPT. The hydraulic system, working against the static reaction force, advances 1-meter-long, 3.57-centimeter-diameter threaded push rod segments into the ground. The CPT, which is mounted on the end of the series of push rods, contains LIF sensors that continuously log tip stress and sleeve friction. The data from these sensors are used to map subsurface stratigraphy. Conductivity or pore pressure sensors can be driven into the ground simultaneously. The 20-ton truck is designed with protected work spaces.
The SCAPS has been modified to provide automatic grouting of the penetrometer hole during retraction of the CPT. It can also decontaminate the push rods as they are retracted from the soil. The 20-ton CPT system is capable of pushing standard push rods to depths of approximately 50 meters.
The main LIF sensor components are as follows:
To operate the SCAPS LIF sensor, the CPT is positioned over a designated penetration point. The LIF sensor response is checked using a standard rhodamine solution held against the sapphire window; sensor response is checked before and after each penetration. The CPT is then advanced into the soil.
The SCAPS LIF system is operated with a N2 laser. The PDA accumulates the fluorescence emission response over 10 laser shots, and the PDA retrieves an emission spectrum of the soil fluorescence and returns this information to the OMA and computer system. The LIF sensor and stratigraphy data collection are interpreted by the on-board computer system.
The spectral resolution of the LIF system under these operating conditions is 2 centimeters. The fluorescence intensity at peak emission wavelength for each stored spectrum is displayed along with the soil classification data.
The Tri-Services SCAPS was designed to qualitatively and quantitatively identify classes of petroleum, polynuclear aromatic hydrocarbon, and volatile organic compound contamination in subsurface soil samples.
The technology field demonstration was held in EPA Region 7 during September 1994. The Innovative Technology Evaluation Report (EPA/540/R-95/520) is available from EPA.
Site Characterization and Analysis Penetrometer System (SCAPS)
EPA PROJECT MANAGER:
Stephen Billets
U.S. EPA
National Exposure Research Laboratory
Characterization Research Division
P.O. Box 93478
Las Vegas, NV 89193-3478
702-798-2232
Fax: 702-798-2261
TECHNOLOGY DEVELOPER CONTACTS:
George Robitaille
Army Environmental Center
Building 4430
Aberdeen Proving Ground, MD 21010
410-612-6865
Fax: 410-612-6836
John Ballard
Waterways Experiment Station
3909 Halls Ferry Road
Vicksburg, MS 39810
601-634-2446
Fax: 601-634-2732
