(In Situ Steam Enhanced Extraction Process)

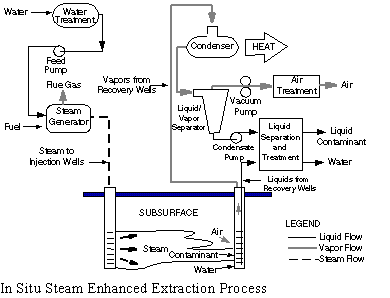

The in situ steam enhanced extraction (ISEE) process removes volatile organic compounds (VOC) and semivolatile organic compounds (SVOC) from contaminated water and soils above and below the water table (see figure below). Pressurized steam is introduced through injection wells to force steam through the soil to thermally enhance the vapor and liquid extraction processes.
The extraction wells have two purposes: (1) to pump groundwater for ex situ treatment; and (2) to transport steam and vaporized contaminants under vacuum to the surface. Recovered contaminants are condensed and recycled, processed with the contaminated groundwater, or treated in the gas phase. The ISEE process uses readily available components such as injection, extraction, and monitoring wells; manifold piping; vapor and liquid separators; vacuum pumps; and gas emission control equipment.
The ISEE process extracts VOCs and SVOCs from contaminated soils and groundwater. The primary compounds suitable for treatment include hydrocarbons such as gasoline, diesel, and jet fuel; solvents such as trichloroethene, trichloroethane, and dichlorobenzene; or a mixture of these compounds. The process may be applied to contaminants above or below the water table. After treatment is complete, subsurface conditions are amenable to biodegradation of residual contaminants, if necessary. The process can be applied to contaminated soil very near the surface with a cap. Compounds denser than water may be treated only in low concentrations, unless a barrier exists or can be created to prevent downward percolation of a separate phase.
In August 1988, a successful pilot-scale demonstration of the ISEE process was completed at a site contaminated with a mixture of solvents. Contaminants amounting to 764 pounds were removed from the 10-foot-diameter, 12-foot-deep test region. After 5 days of steam injection, soil contaminant concentrations dropped by a factor of 10.
In December 1993, a full-scale demonstration was completed at a gasoline spill site at Lawrence Livermore National Laboratory (LLNL) in Altamont Hills, California. Gasoline was dispersed both above and below groundwater due to a 25-foot rise in the water table since the spill occurred. The lateral distribution of liquid-phase gasoline was within a region 150 feet in diameter and up to 125 feet deep. Appendix A of the Hughes Environmental Systems Innovative Technology Evaluation Report (EPA/540/R-94/510) contains detailed results from the LLNL SITE demonstration. This report is available from EPA.
A pilot-scale test of the ISEE process was conducted in 1994 at Naval Air Station (NAS) Lemoore in California. During 3 months of operation, over 98,000 gallons of JP-5 jet fuel was recovered from medium permeability, partially saturated sand to a depth of 20 feet. Preliminary soil sampling showed reductions of JP-5 jet fuel concentrations from several thousand parts per million (ppm) above the water table to values less than 25 ppm.
For more information about similar technologies, see the following profiles in the Demonstration Program section: Hughes Environmental Systems, Inc., (completed projects) and Praxis Environmental Technologies, Inc. (ongoing projects).
During the SITE demonstration at LLNL, over 7,600 gallons of gasoline were recovered from above and below the water table in 26 weeks of operation. Recovery rates were about 50 times greater than those achieved by vacuum extraction and groundwater pumping alone. The rates were highest during cyclic steam injection, after subsurface soils reached steam temperatures. The majority of the recovered gasoline came from the condenser as a separate phase liquid or in the effluent air stream.
Without further pumping, 1,2-dichloroethene, benzene, ethylbenzene, toluene, and xylene concentrations in sampled groundwater were decreased to below maximum contaminant levels after 6 months. Post-process soil sampling indicated that a thriving hydrocarbon-degrading microbial population existed in soils experiencing prolonged steam contact.
EPA PROJECT MANAGER:
Paul dePercin
U.S. EPA
National Risk Management Research Laboratory
26 West Martin Luther King Drive
Cincinnati, OH 45268
513-569-7797
Fax: 513-569-7105
E-Mail:
dePercin.Paul@epamail.epa.gov
TECHNOLOGY DEVELOPER CONTACTS:
Kent Udell
Berkeley Environmental Restoration Center
6147 Etcheverry Hall
Berkeley, CA 94720-1740
510-642-2928
Fax: 510-642-6163
Steve Collins
Berkeley Environmental Restoration Center
461 Evans Hall
Berkeley, CA 94720-1706
510-643-1300
Fax: 510-643-2076
