(Rochem Disc Tube™ Module System)
The Rochem Disc Tube™ Module System uses membrane separation to treat aqueous solutions ranging from seawater to leachate contaminated with organic solvents. The system uses osmosis through a semipermeable membrane to separate pure water from contaminated liquids.
Osmotic theory implies that a saline solution may be separated from pure water by a semipermeable membrane. The higher osmotic pressure of the salt solution causes the water (and other compounds having high diffusion rates through the selected membrane) to diffuse through the membrane into the salt water. Water will continue to permeate the salt solution until the osmotic pressure of the salt solution equals the osmotic pressure of the pure water. At this point, the salt concentrations of the two solutions are equal, eliminating any additional driving force for mass transfer across the membrane. However, if external pressure is exerted on the salt solution, water will flow in the reverse direction from the salt solution into the pure water.
This phenomenon, known as reverse osmosis (RO), can separate pure water from contaminated matrices. RO can treat hazardous wastes by concentrating the hazardous chemical constituents in an aqueous brine, while recovering pure water on the other side of the membrane.
Fluid dynamics and system construction result in an open-channel, fully turbulent feed and water-flow system. This configuration prevents accumulation of suspended solids on the separation membranes, ensuring high efficiency filtration for water and contaminants. Also, the design of the disc tubes allows easy cleaning of the filtration medium, providing a long service life for the membranes.

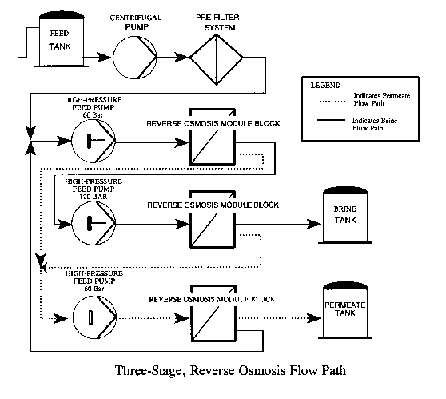

A general flow path for the Rochem Disc Tube™ Module System as applied at the SITE demonstration is shown on the previous page. Waste feed, process permeate, and rinse water are potential feed materials to the RO modules. The modules are skid-mounted and consist of a tank and a high-pressure feed system. The high-pressure feed system consists of a centrifugal feed pump, a prefilter cartridge housing, and a triplex plunger pump to feed the RO modules. The processing units are self-contained and require electrical and interconnection process piping before operation.
Many types of waste material can be treated with this system, including sanitary and hazardous landfill leachate containing both organic and inorganic chemical species.
This technology was accepted into the SITE Demonstration Program in July 1991. The demonstration was conducted in August 1994 at the Central Landfill Superfund site in Johnston, Rhode Island. The system was used to treat landfill leachate from a hazardous waste landfill. During the demonstration, approximately 4 gallons per minute of contaminated waste was processed over a 3-week period. All feed and residual effluent streams were sampled to evaluate the performance of this technology. The Innovative Technology Evaluation Report (EPA/540/R-96/507), the Technology Capsule (EPA/540/R-96/507a), and the Demonstration Bulletin (EPA/540/MR-96/507) are available from EPA.
Preliminary results from the demonstration suggest the following:
EPA PROJECT MANAGER:
Douglas Grosse
U.S. EPA
National Risk Management Research Laboratory
26 West Martin Luther King Drive
Cincinnati, OH 45268
513-569-7844
Fax: 513-569-7585
TECHNOLOGY DEVELOPER CONTACT
David LaMonica
Rochem Separation Systems, Inc.
3904 Del Amo Boulevard, Suite 801
Torrance, CA 90503
310-370-3160
Fax: 310-370-4988
