(Cross-Flow Pervaporation System)
The ZENON Environmental Inc. (ZENON), cross-flow pervaporation technology is a membrane-based process that removes volatile organic compounds (VOC) from aqueous matrices. The technology uses an organophilic membrane made of nonporous silicone rubber, which is permeable to organic compounds, and highly resistant to degradation.
In a typical field application, contaminated water is pumped from an equalization tank through a prefilter to remove debris and silt particles, and then into a heat exchanger that raises the water temperature to about 165°F (75°C). The heated water then flows into a pervaporation module containing the organophilic membranes. The composition of the membranes causes organics in solution to adsorb to them. A vacuum applied to the system causes the organics to diffuse through the membranes and move out of the pervaporation module. This material is then passed through a condenser generating a highly concentrated liquid called permeate. Treated water exits the pervaporation module and is discharged from the system. The permeate separates into aqueous and organic phases. Aqueous phase permeate is sent back to the pervaporation module for further treatment, while the organic phase permeate is discharged to a receiving vessel.
Because emissions are vented from the system downstream of the condenser, organics are kept in solution, thus minimizing air releases. The condensed organic materials represent only a small fraction of the initial wastewater volume and may be subsequently disposed of at significant cost savings. This process may also treat industrial waste streams and recover organics for later use.
Pervaporation can be applied to aqueous waste streams such as groundwater, lagoons, leachate, and rinse waters that are contaminated with VOCs such as solvents, degreasers, and gasoline. The technology is applicable to the types of aqueous wastes treated by carbon adsorption, air stripping, and steam stripping.
This technology was accepted into the SITE Emerging Technology Program (ETP) in January 1989. The Emerging Technology Report (EPA/540/F-93/503), which details results from the ETP evaluation, is available from EPA. Based on results from the ETP, ZENON was invited to demonstrate the technology in the Demonstration Program. A pilot-scale pervaporation system, built by ZENON for Environment Canada's Emergencies Engineering Division, was tested over a 2-year period (see photograph on previous page). During the second year, testing was carried out over several months at a petroleum hydrocarbon-contaminated site in Ontario, Canada.
A full-scale SITE demonstration took place in February 1995 at a former waste disposal area at Naval Air Station North Island in San Diego, California. The demonstration was conducted as a cooperative effort among EPA, ZENON, the Naval Environmental Leadership Program, Environment Canada, and the Ontario Ministry of Environment and Energy.
Organics were the primary groundwater contaminant at the site, and trichloroethene (TCE) was selected as the contaminant of concern for the demonstration. The Demonstration Bulletin (EPA/540/MR-95/511) and Demonstration Capsule (EPA/540/R-95/511a) are available from EPA.
Analysis of demonstration samples indicate that the ZENON pervaporation system was about 98 percent effective in removing TCE from groundwater. The system achieved this removal efficiency with TCE influent concentrations of up to 250 parts per million at a flow rate of 10 gallons per minute (gpm) or less. Treatment efficiency remained fairly consistent throughout the demonstration; however, the treatment efficiency decreased at various times due to mineral scaling problems.

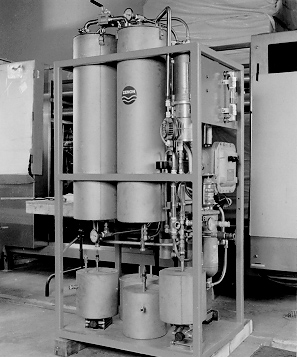

Pilot-Scale Cross-Flow Pervaporation System
